Description

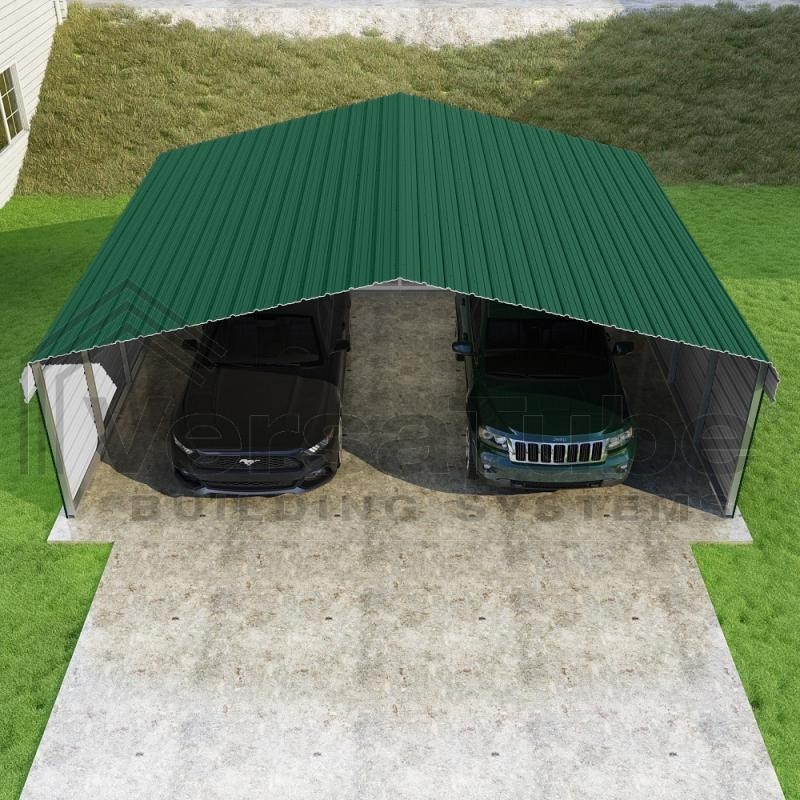

Versatube 3-Sided 24x20x7 Classic Steel Carport Kit (C3E324200070)
The Classic design has been the traditional mainstay of carport manufacturers and retailers for many years. And with the VersaTube Slip-Fit frame system, you can get your carport kit with roof assembled in a single afternoon using common tools.
Structure Dimensions:
Erection Size: 24’W x 20’L x 7’H
Roof Pitch: 3:12
Sheet Metal Coverage: Roof, sides and back
Side Wall Height: 7′
Peak Height: 10′
Ground-To-Truss Brace Clearance: Approx. 7′
Special Note on Frame Length: Actual frame length is 18′ long with 4.5′ on center truss spacing
On Center Spacing: 4.5′
Steel Frame: 2″x 3″ 14 & 15 gauge tubing made of the highest quality domestic galvanized steel
Sheet Metal Panels: 33
Sheet Metal Panel Size: 12’1″, 10′ and 9’2″
Sheet Metal Gauge: 29 gauge
Maximum Snow Load:
Ground Snow Load – 31lbs.
Roof Snow (LIVE) Load – 22 lbs
at 90 MPH wind load
Maximum Wind Load:
109 MPH wind load
at 27lbs. Ground Snow Load
20 lbs Roof Snow (LIVE) Load
Shipping Dimensions:
Pallet Size: 40″W x 144″L x 16″H
Total Weight: 1600.02 lbs
Warranty Details:
Frame Warranty: 20 year limited + product pledge
20 year paint finish
Classic Series DIY carport kit features the addition of a back enclosure and side sheet metal panels to the standard horizontal roof canopy, providing extra protection with full coverage on three sides.
