VersaTube 2-Sided 12x29x10 Classic Steel Carport Kit (CM012290100-NS0009)

Description

VersaTube 2-Sided 12x29x10 Classic Steel Carport Kit (CM012290100-NS0009)

The Classic design has been the traditional mainstay of carport manufacturers and retailers for many years. And with the VersaTube Slip-Fit frame system, you can get your carport kit with roof and eave sides assembled in a single afternoon using common tools.
Structure Dimensions:
Erection Size: 12’W x 29’L x 10’H
Roof Pitch: 3:12
Sheet Metal Coverage: Roof and sides
Side Wall Height: 10′
Peak Height: 11’6″
Special Note on Frame Length: Actual frame length is 27′ long with 4.5′ on center truss spacing
On Center Spacing: 4.5′
Steel Frame: 2″x 3″ 14 & 15 gauge tubing made of the highest quality domestic galvanized steel
Sheet Metal Panels: 33
Sheet Metal Panel Size: 10′ and 9’2″
Sheet Metal Gauge: 29 gauge

Maximum Snow Load:
Ground Snow Load – 31lbs.
Roof Snow (LIVE) Load – 22 lbs
at 90 MPH wind load

Maximum Wind Load:
90 MPH wind load
at 27lbs. Ground Snow Load
20 lbs Roof Snow (LIVE) Load

Shipping Dimensions:
Pallet Size: 40″W x 120″L x 16″H
Total Weight: 1504.62 lbs

Warranty Details:
Frame Warranty: 20 year limited + product pledge
Sheet Metal Warranty: 20 year paint finish

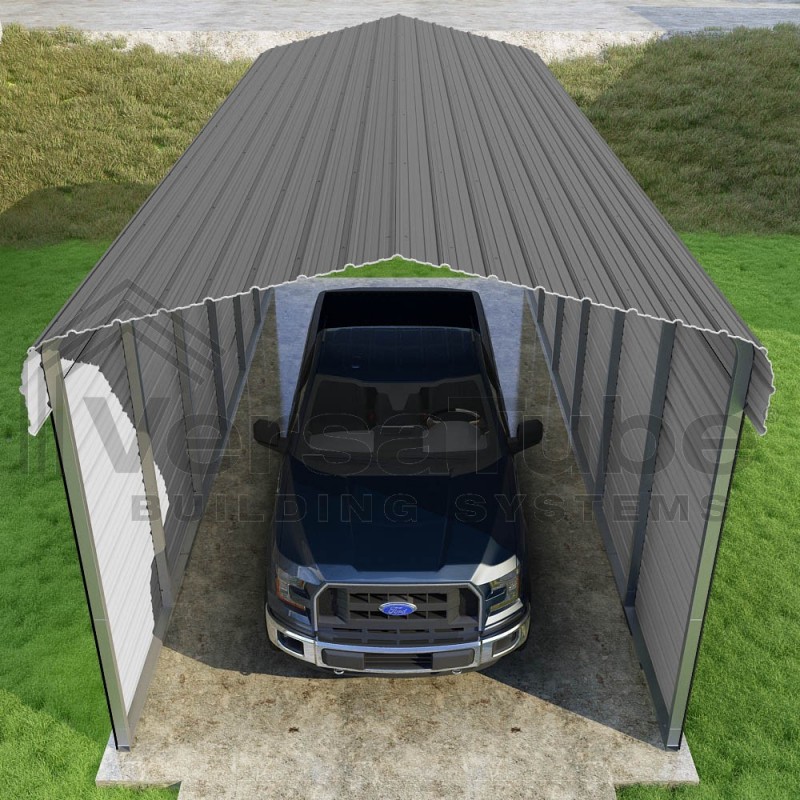

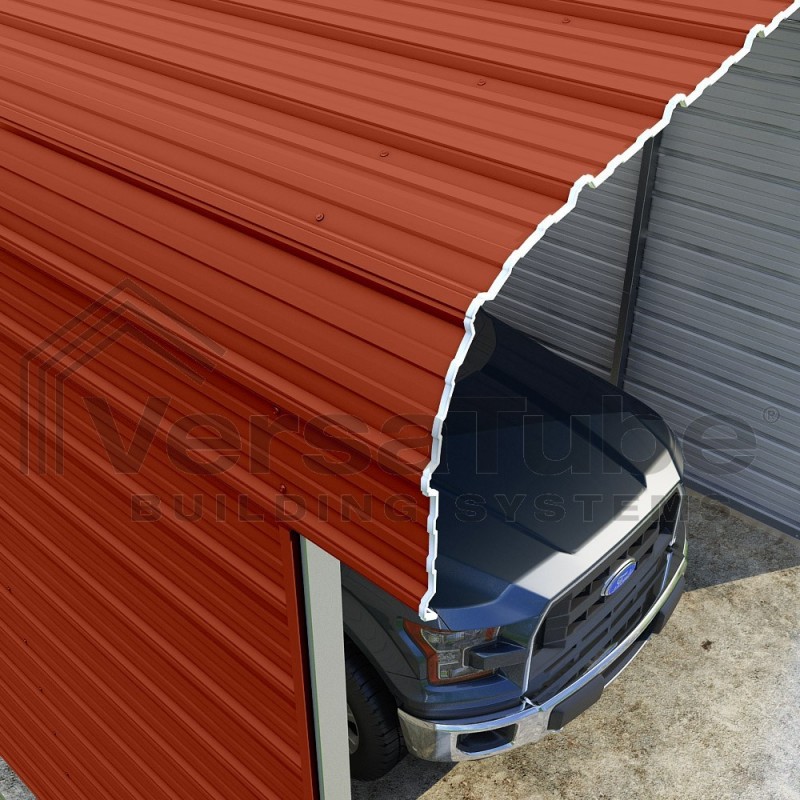

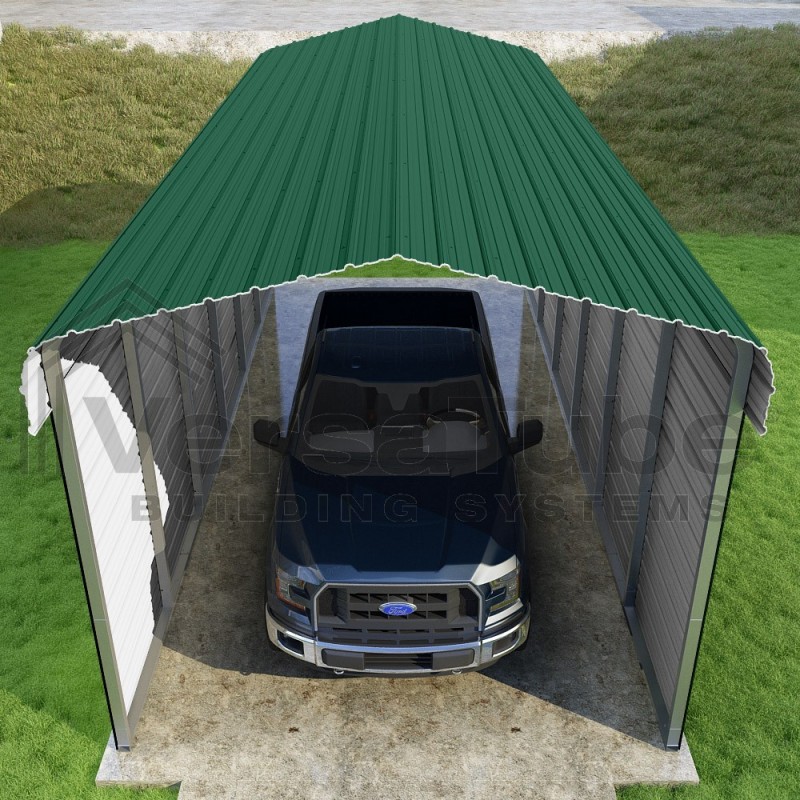

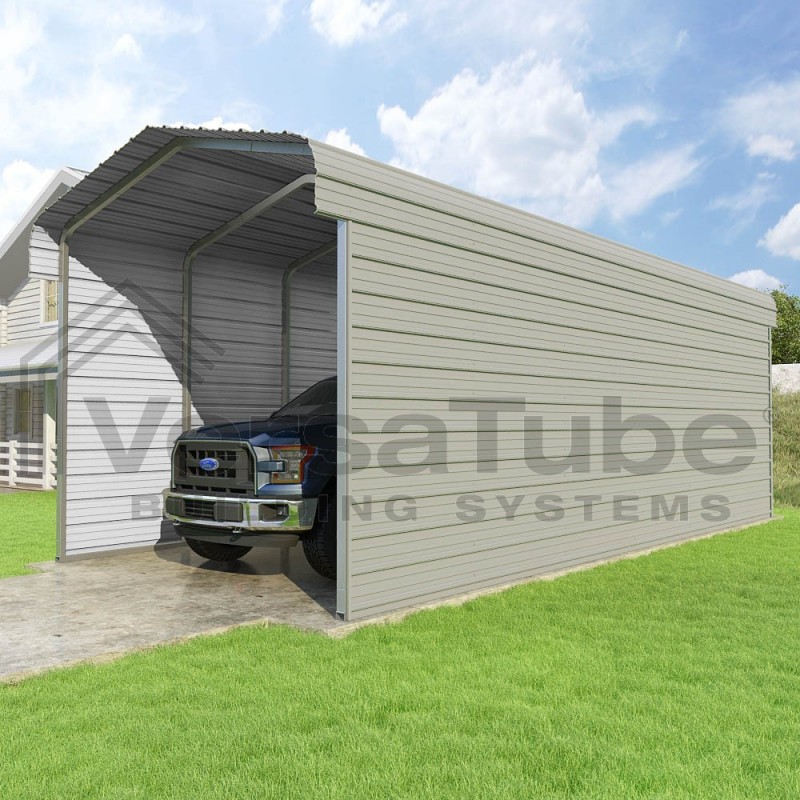

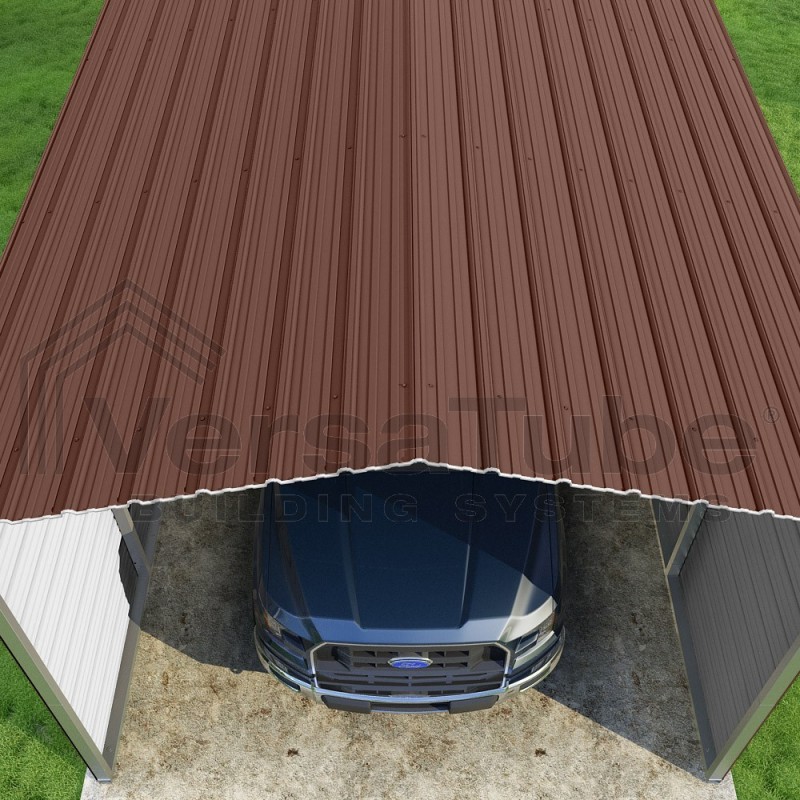

Classic Series DIY carport kit features the addition of side sheet metal panels to the standard horizontal roof canopy, providing extra protection with complete ground-to-ground coverage.

SELECT COLOR OF YOUR CHOICE!
